Inveraray Castle

Words: Cass Stern
Photos: acilo, TomasSereda, miroslav_1, Shunrei, PK6289, Hiob, trotalo

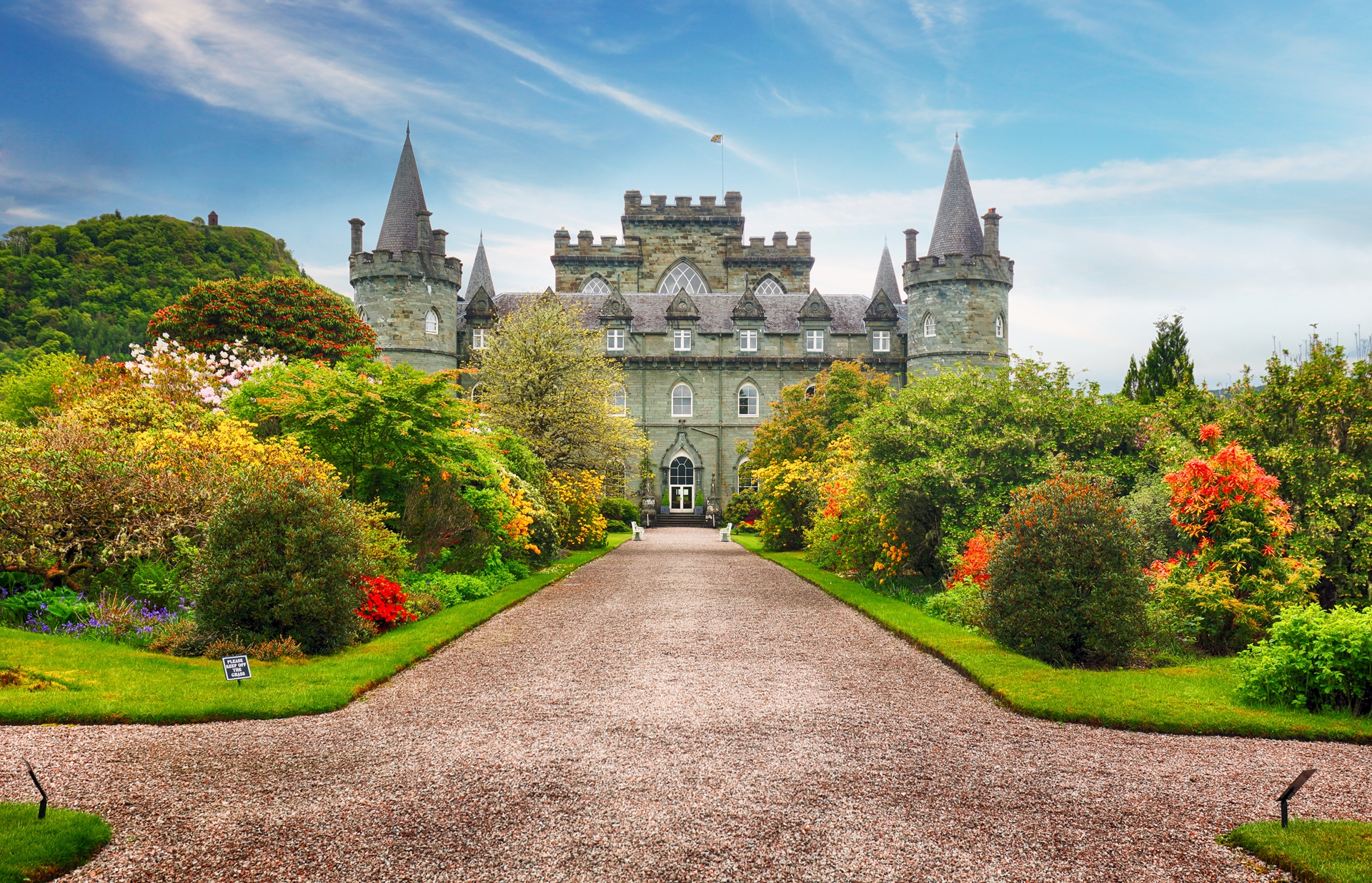

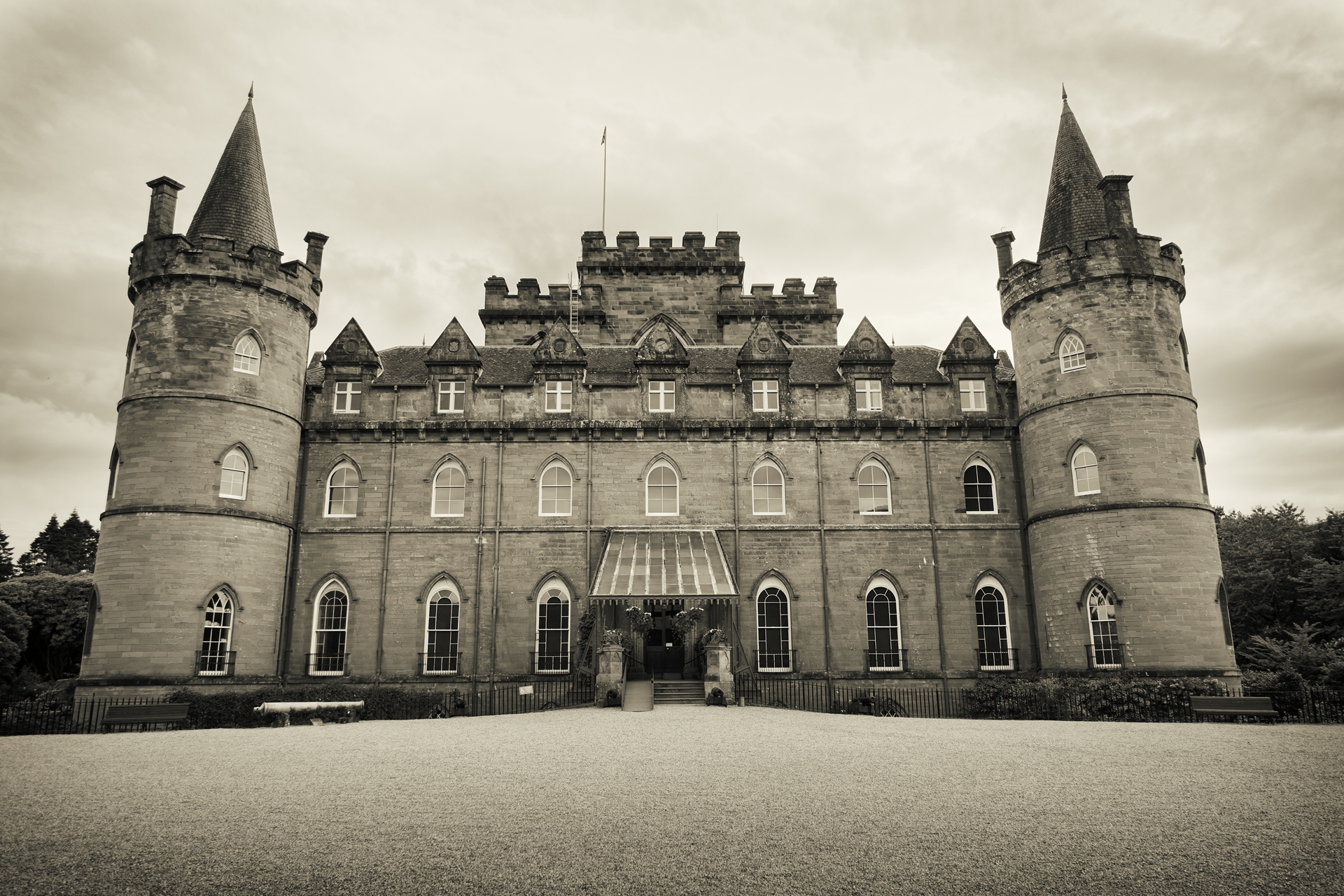

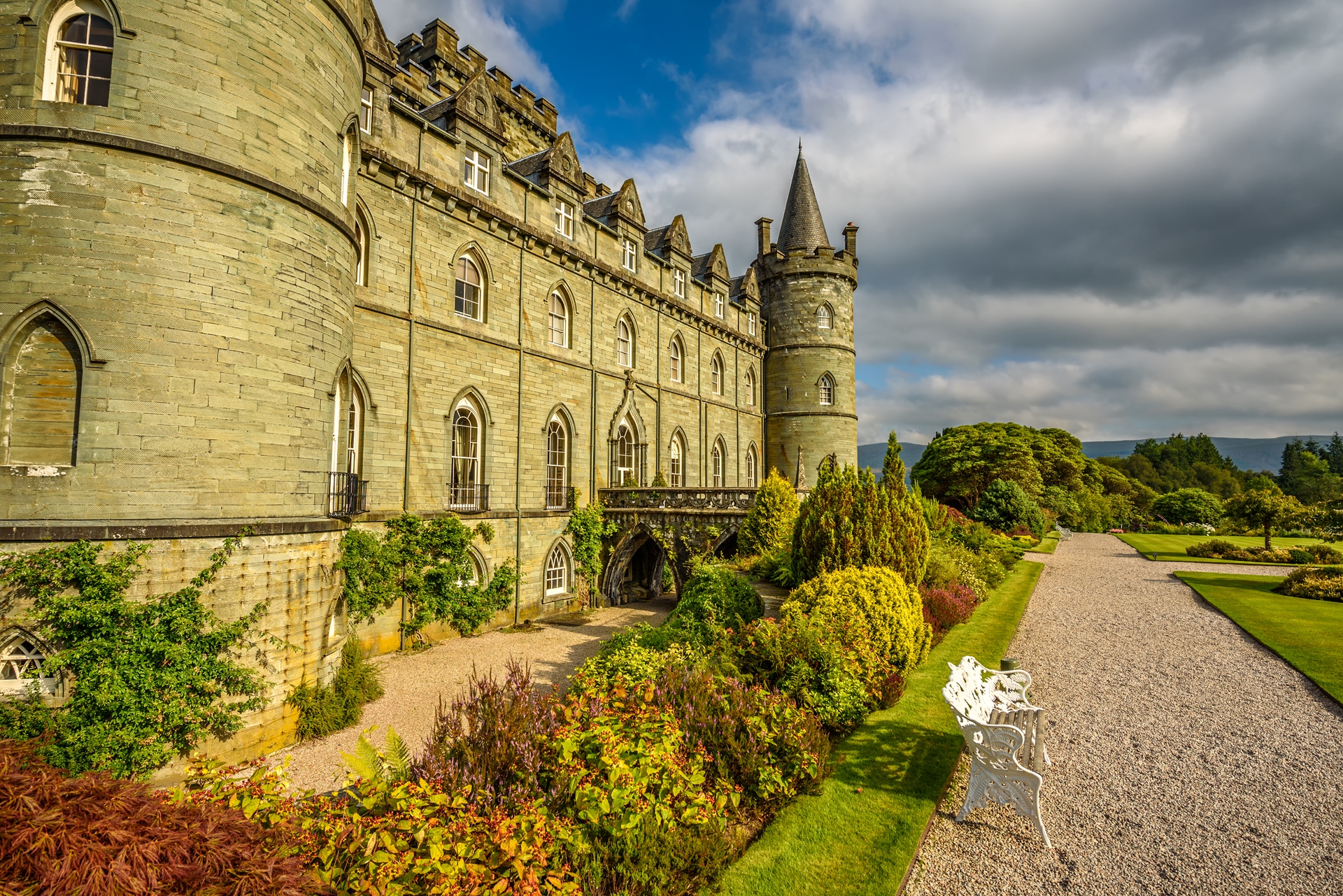

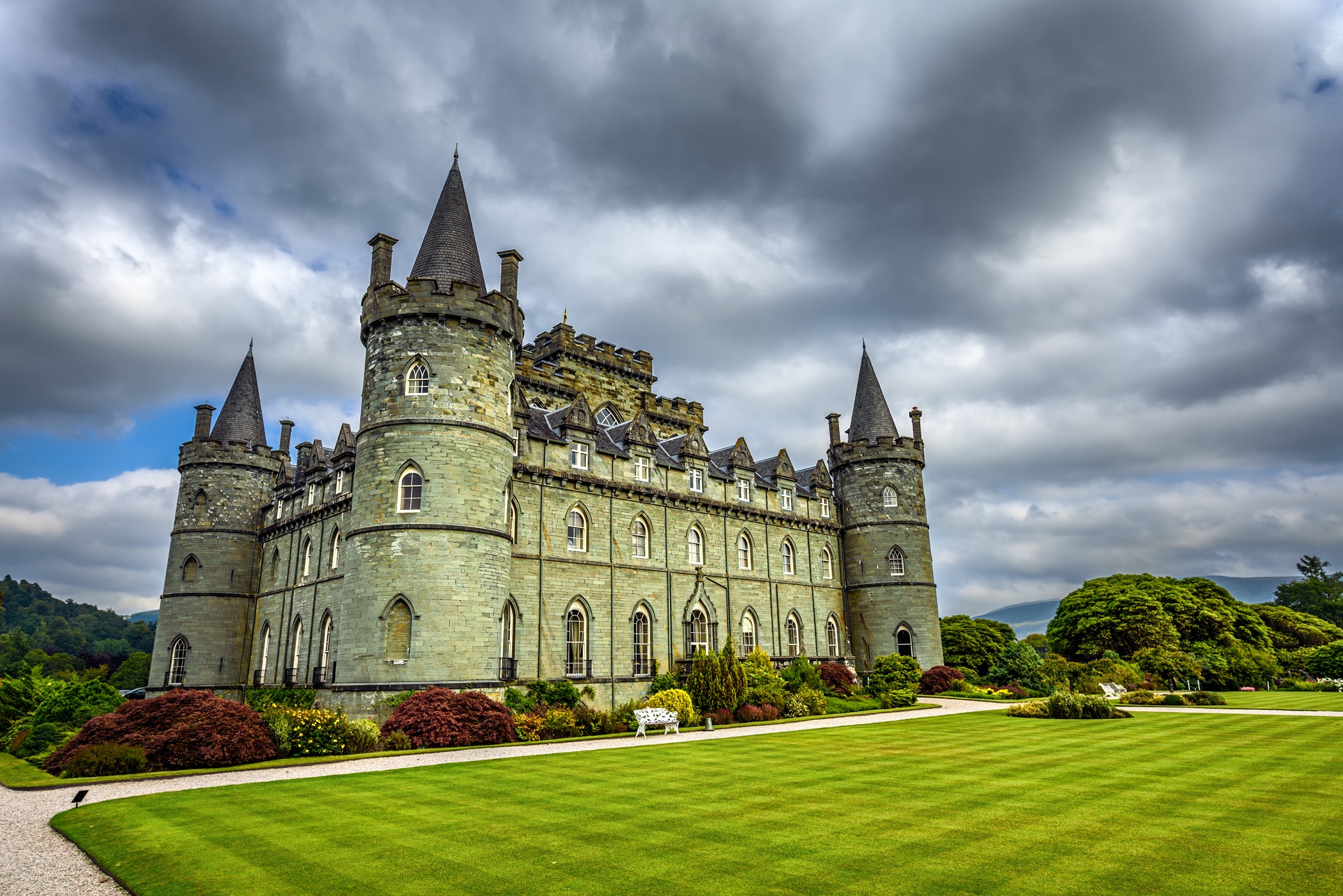

Inveraray Castle, one of Scotland’s most iconic Gothic Revival structures, rises from the banks of Loch Fyne like a monument to stonework itself. For masonry contractors and material suppliers, the castle serves as a working model of 18th-century craftsmanship, technical precision, and ongoing preservation responsibility.

Construction of the current Inveraray Castle, a significant example of the Gothic Revival style, began in 1746 under the direction of the 3rd Duke of Argyll. The original design was based on earlier sketches by the English architect John Vanbrugh, with construction overseen by Roger Morris and Scotland’s own William Adam. Adam, the foremost architect-mason of his time, led the early work alongside his son John. The project spanned several decades, with later interiors completed under Robert and James Mylne by the 1780s.

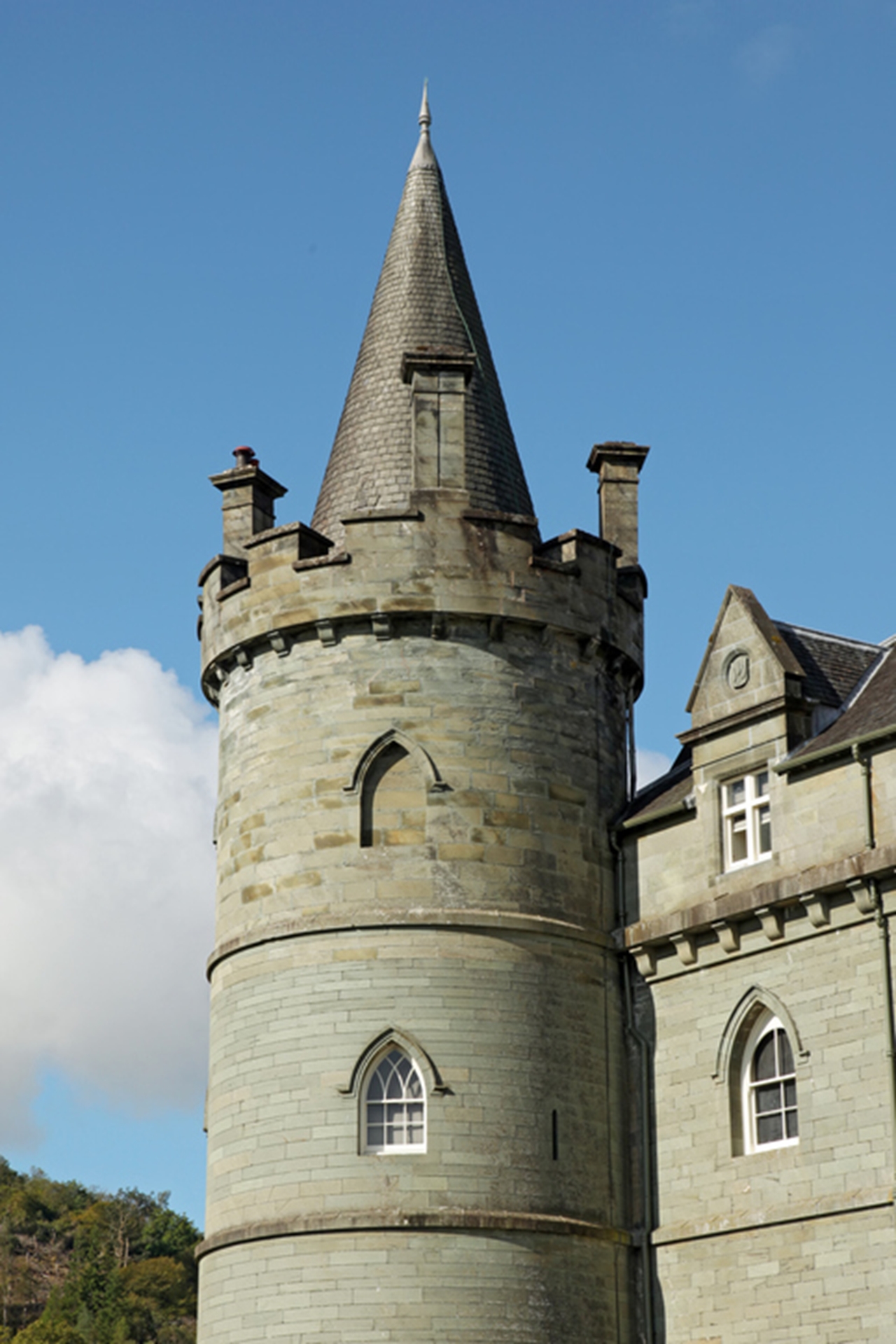

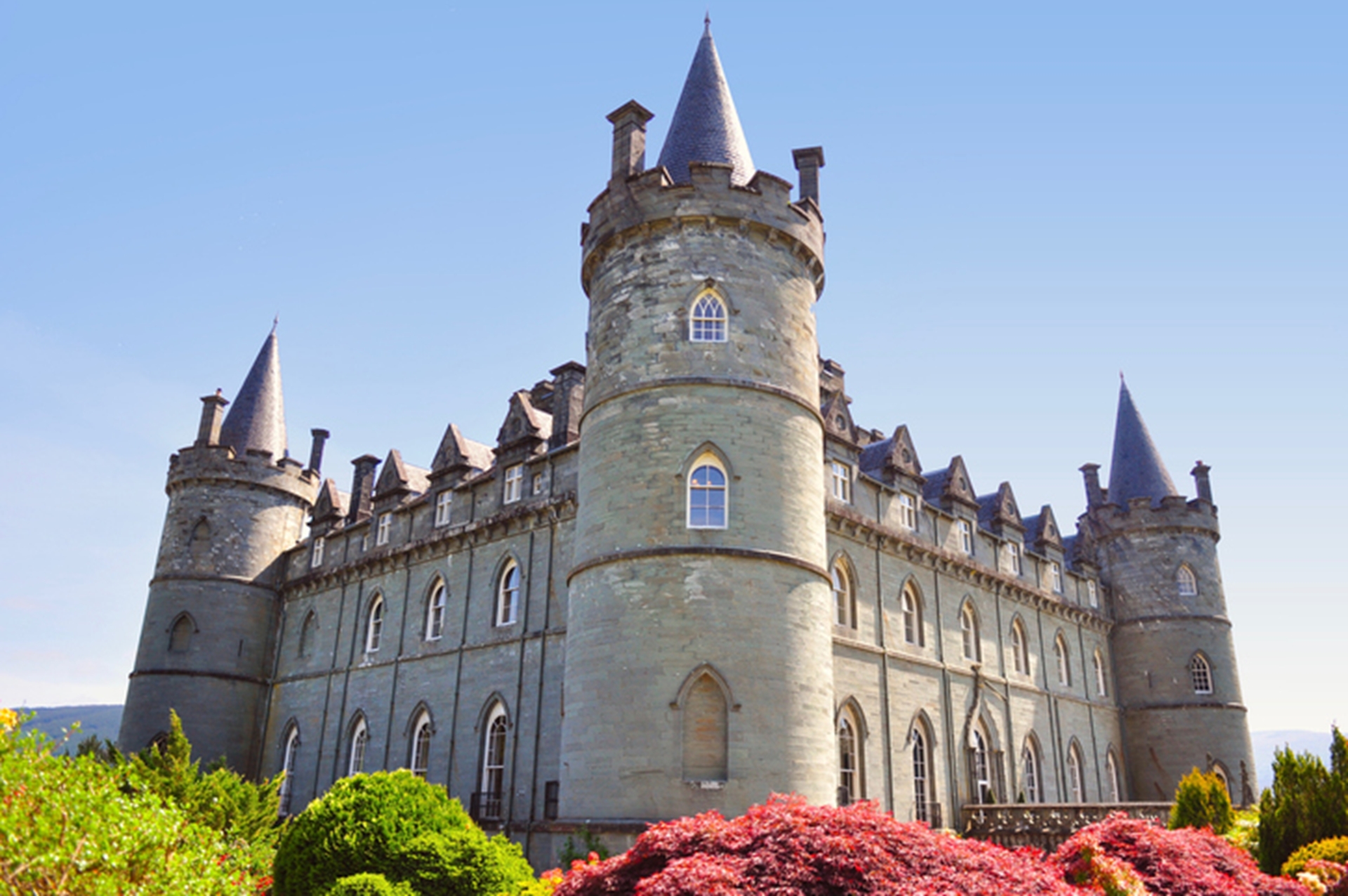

The castle’s ashlar masonry stands out for its precision. Built from pale grey sandstone and schist sourced locally, the stone was finely dressed and laid in uniform courses. Decorative elements such as string courses, hood moulds, and carved voussoirs underscore the high level of skill involved. The original turrets and crenellations reflect a blend of Gothic and Baroque styles, though the castle's now-iconic conical towers were added later, following a fire in 1877. The post-fire restoration was led by architect Anthony Salvin, who added these prominent Gothic features while preserving the original builders' structural intent.

Inveraray’s construction displays several hallmarks of traditional Scottish masonry, notably the use of lime mortar, radial coursing on arches, and carefully tooled joints. Masons’ marks can still be found etched into the stone, particularly along the estate bridges and upper parapets, signatures of the craftsmen who shaped the building by hand. These marks not only reveal the working methods of the time but also indicate how labor was organized among guild-trained teams.

For those in the masonry trade, Inveraray offers a rare look at the durability of 18th-century stonework in one of the harshest climates in the British Isles. The castle was engineered with water management in mind. Its sloped roofs, castellated parapets, and horizontal string courses all serve to direct water away from the walls, a crucial consideration in the wet, wind-driven environment of western Scotland. The structural integrity of these features has been repeatedly tested over time.

The most severe test came in 1975 when fire swept through a large section of the castle. In response, the 12th Duke of Argyll launched an ambitious restoration campaign. What followed was a textbook example of heritage conservation executed under pressure. Damaged ceilings were stabilized and reattached, joists were reinforced with steel, and exterior ashlar was painstakingly repaired using stone that matched the original in color and composition. Lime mortars were reintroduced to ensure breathability, and all interventions were carried out under the oversight of heritage specialists.

Inveraray’s restoration continued into the 21st century with work focused on the roof, façades, and supporting estate structures. Modern contractors faced the same material challenges as their 18th-century predecessors—matching stone grain, color, and tooling technique. Attention to detail was critical. Even the mortar mixes were tested to ensure historical compatibility. The challenges of preserving a historic structure in a modern context, such as sourcing authentic materials and replicating historic techniques, were met with the same dedication to authenticity and craftsmanship as the original builders.

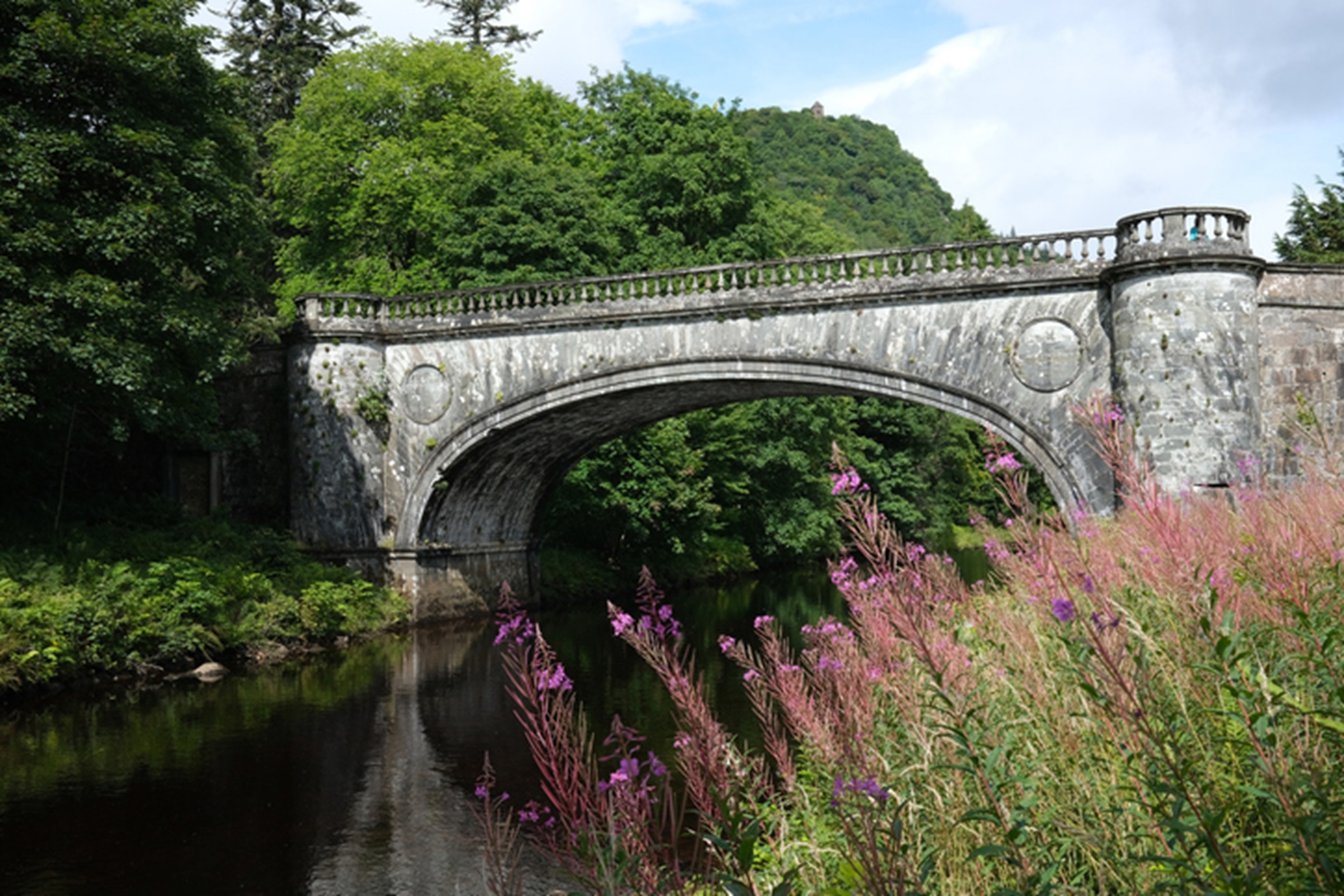

The surrounding estate structures, including the Aray Bridge, also underwent conservation. Built by Roger Morris and John Adam, the bridge was repaired using the same rubble stone and voussoir techniques seen in the main castle. Conservation teams addressed cracked parapets and replaced balustrades while carefully preserving carved graffiti from the 18th century, which included masons’ initials and ship etchings likely made by workers during construction.

Another nearby structure, the Inveraray Bell Tower, received its own preservation effort. Initially constructed in the 1920s, the tower was later damaged by water ingress and neglect. It was subsequently stabilized with new flooring and stonework, primarily by volunteer craftsmen trained in traditional techniques. Their work, undertaken with a deep respect for local heritage, highlights the enduring connection between local stoneworkers and the built environment of Argyll.

What makes Inveraray Castle a point of interest for today’s masons is not just the quality of the original work, but how its preservation has been handled. Every restoration has adhered to principles of material authenticity and minimal intervention. Stone is replaced only when strictly necessary, and always in a manner consistent with the original craftsmanship. Breathable lime mortars remain the standard. Cutting corners isn’t an option—not when the building is not only a cultural landmark but also a technical benchmark for masonry excellence.

Contractors working on the castle have emphasized the need for close coordination with conservation architects and agencies, such as Historic Environment Scotland. Planning approvals are rigorous, and every change to the structure is documented. This environment demands not only craftsmanship but project management skills, historical research, and a deep respect for the original work.

The structural and symbolic importance of Inveraray Castle is inextricably linked. Architecturally, it was one of Scotland’s earliest full-scale experiments in the Gothic Revival style. Structurally, it demonstrates how traditional masonry, when executed correctly, can last centuries with minimal maintenance. Symbolically, it remains the seat of Clan Campbell, a living archive of Scottish history, with records dating back to the 13th century housed in its rooms.

For masonry professionals, Inveraray is a master class in enduring craftsmanship. Whether sourcing stone, replicating historic tooling, or navigating the challenges of moisture control, the castle offers real-world lessons. Every parapet and passage tells a story not just of the past, but of the present demands on those tasked with keeping that past alive.

As masonry contractors face increasing pressure to balance heritage preservation with modern standards, Inveraray Castle remains a case study in doing it right: material by material, joint by joint, stone by stone.
