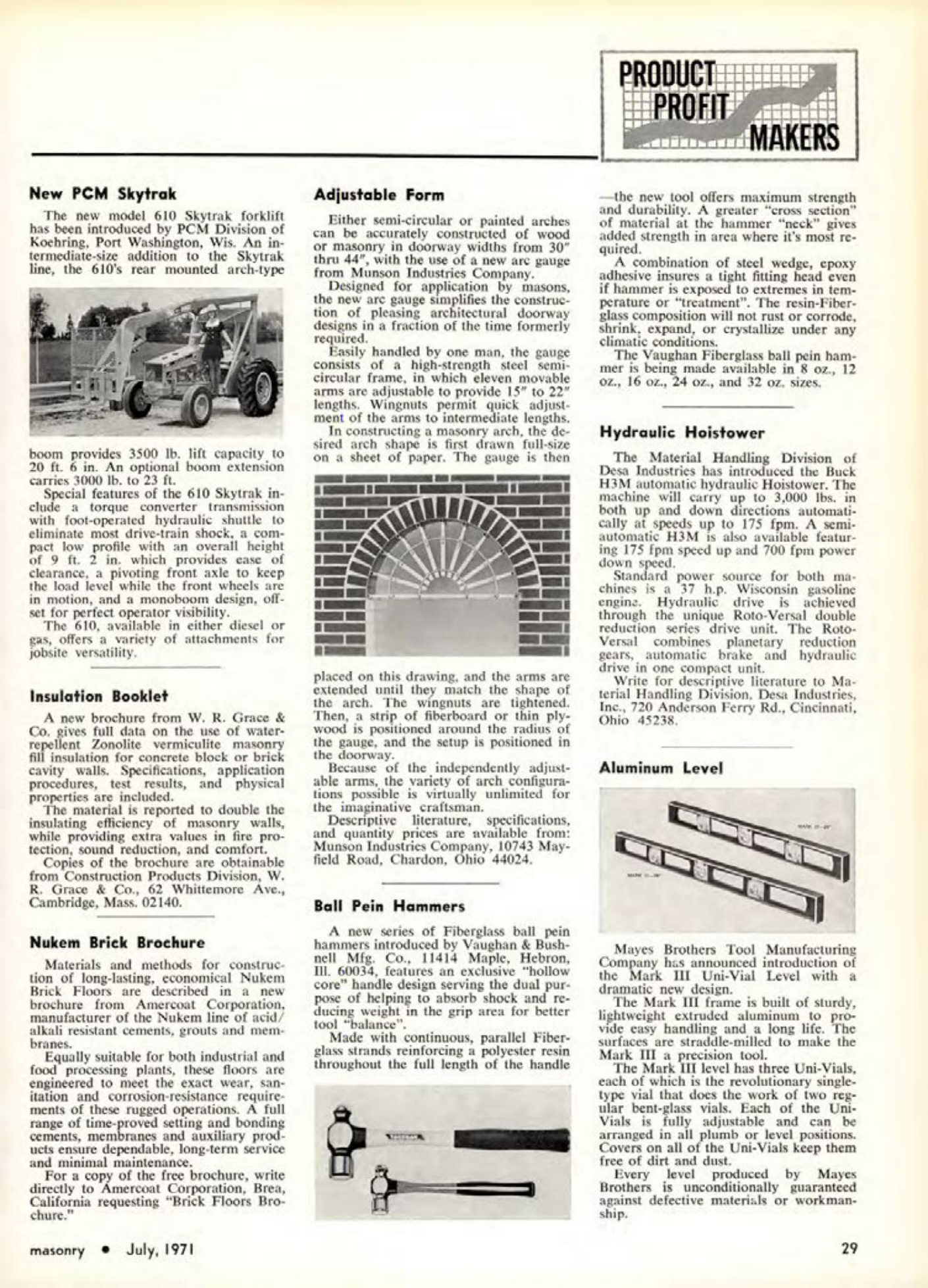

Masonry Magazine July 1971 Page. 29
New PCM Skytrak
The new model 610 Skytrak forklift has been introduced by PCM Division of Koehring, Port Washington, Wis. An intermediate-size addition to the Skytrak line, the 610's rear mounted arch-type boom provides 3500 lb. lift capacity to 20 ft. 6 in. An optional boom extension carries 3000 lb. to 23 ft.
Special features of the 610 Skytrak include a torque converter transmission with foot-operated hydraulic shuttle to eliminate most drive-train shock, a compact low profile with an overall height of 9 ft. 2 in. which provides ease of clearance, a pivoting front axle to keep the load level while the front wheels are in motion, and a monoboom design, offset for perfect operator visibility.
The 610, available in either diesel or gas, offers a variety of attachments for jobsite versatility.
Insulation Booklet
A new brochure from W. R. Grace & Co. gives full data on the use of water-repellent Zonolite vermiculite masonry fill insulation for concrete block or brick cavity walls. Specifications, application procedures, test results, and physical properties are included.
The material is reported to double the insulating efficiency of masonry walls, while providing extra values in fire protection, sound reduction, and comfort.
Copies of the brochure are obtainable from Construction Products Division, W. R. Grace & Co., 62 Whittemore Ave., Cambridge, Mass. 02140.
Nukem Brick Brochure
Materials and methods for construction of long-lasting, economical Nukem Brick Floors are described in a new brochure from Amercoat Corporation, manufacturer of the Nukem line of acid/alkali resistant cements, grouts and membranes.
Equally suitable for both industrial and food processing plants, these floors are engineered to meet the exact wear, sanitation and corrosion-resistance requirements of these rugged operations. A full range of time-proved setting and bonding cements, membranes and auxiliary products ensure dependable, long-term service and minimal maintenance.
For a copy of the free brochure, write directly to Amercoat Corporation, Brea, California requesting "Brick Floors Brochure."
Adjustable Form
Either semi-circular or painted arches can be accurately constructed of wood or masonry in doorway widths from 30" thru 44", with the use of a new arc gauge from Munson Industries Company.
Designed for application by masons, the new arc gauge simplifies the construction of pleasing architectural doorway designs in a fraction of the time formerly required.
Easily handled by one man, the gauge consists of a high-strength steel semi-circular frame, in which eleven movable arms are adjustable to provide 15" to 22" lengths. Wingnuts permit quick adjustment of the arms to intermediate lengths.
In constructing a masonry arch, the desired arch shape is first drawn full-size on a sheet of paper. The gauge is then placed on this drawing, and the arms are extended until they match the shape of the arch. The wingnuts are tightened. Then, a strip of fiberboard or thin plywood is positioned around the radius of the gauge, and the setup is positioned in the doorway.
Because of the independently adjustable arms, the variety of arch configurations possible is virtually unlimited for the imaginative craftsman.
Descriptive literature, specifications, and quantity prices are available from: Munson Industries Company, 10743 Mayfield Road, Chardon, Ohio 44024.
Ball Pein Hammers
A new series of Fiberglass ball pein hammers introduced by Vaughan & Bushnell Mfg. Co., 11414 Maple, Hebron, III. 60034, features an exclusive "hollow core" handle design serving the dual purpose of helping to absorb shock and reducing weight in the grip area for better tool "balance".
Made with continuous, parallel Fiberglass strands reinforcing a polyester resin throughout the full length of the handle -the new tool offers maximum strength and durability. A greater "cross section" of material at the hammer "neck" gives added strength in area where it's most required.
A combination of steel wedge, epoxy adhesive insures a tight fitting head even if hammer is exposed to to extremes in temperature or "treatment". The resin-Fiberglass composition will not rust or corrode, shrink, expand, or crystallize under any climatic conditions.
The Vaughan Fiberglass ball pein hammer is being made available in 8 oz., 12 oz., 16 oz., 24 oz., and 32 oz. sizes.
Hydraulic Hoistower
The Material Handling Division of Desa Industries has introduced the Buck H3M automatic hydraulic Hoistower. The machine will carry up to 3,000 lbs. in both up and down directions automatically at speeds up to 175 fpm. A semi-automatic H3M is also available featuring 175 fpm speed up and 700 fpm power down speed.
Standard power source for both machines is a 37 h.p. Wisconsin gasoline engine. Hydraulic drive is achieved through the unique Roto-Versal double reduction series drive unit. The Roto-Versal combines planetary reduction gears, automatic brake and hydraulic drive in one compact unit.
Write for descriptive literature to Material Handling Division. Desa Industries, Inc., 720 Anderson Ferry Rd., Cincinnati, Ohio 45238,
Aluminum Level
Mayes Brothers Tool Manufacturing Company has announced introduction of the Mark III Uni-Vial Level with a dramatic new design.
The Mark III frame is built of sturdy, lightweight extruded aluminum to provide easy handling and a long life. The surfaces are straddle-milled to make the Mark III a precision tool.
The Mark III level has three Uni-Vials, each of which is the revolutionary single-type vial that does the work of two regular bent-glass vials. Each of the Uni-Vials is fully adjustable and can be arranged in all plumb or level positions. Covers on all of the Uni-Vials keep them free of dirt and dust.
Every level produced by Mayes Brothers is unconditionally guaranteed against defective materials or workmanship.
