A Mason’s Most Trusted Tool: The Brick Trowel

Words: Mackenzie Claassen
Photos: MARSHALLTOWN

With technology advancing and manufacturing methods improving, many construction tools have been redesigned or revamped. But in masonry, one tool has remained constant, not because it hasn’t evolved, but because its purpose and performance have always worked.

Every mason carries a brick trowel. It’s one of the most essential tools for laying brick, block, and stone. While the design has stayed consistent, today’s brick trowels offer a range of blade patterns, blade sizes, and handle options to cater to individuals and regions. The brick trowel honors tradition while still giving tradesmen the ability to choose the trowel that feels right.

Blade Patterns
“Pattern” is an industry term used to describe the shape of a brick trowel’s blade. There are three main patterns of brick trowel: London, Wide London, and Philadelphia.

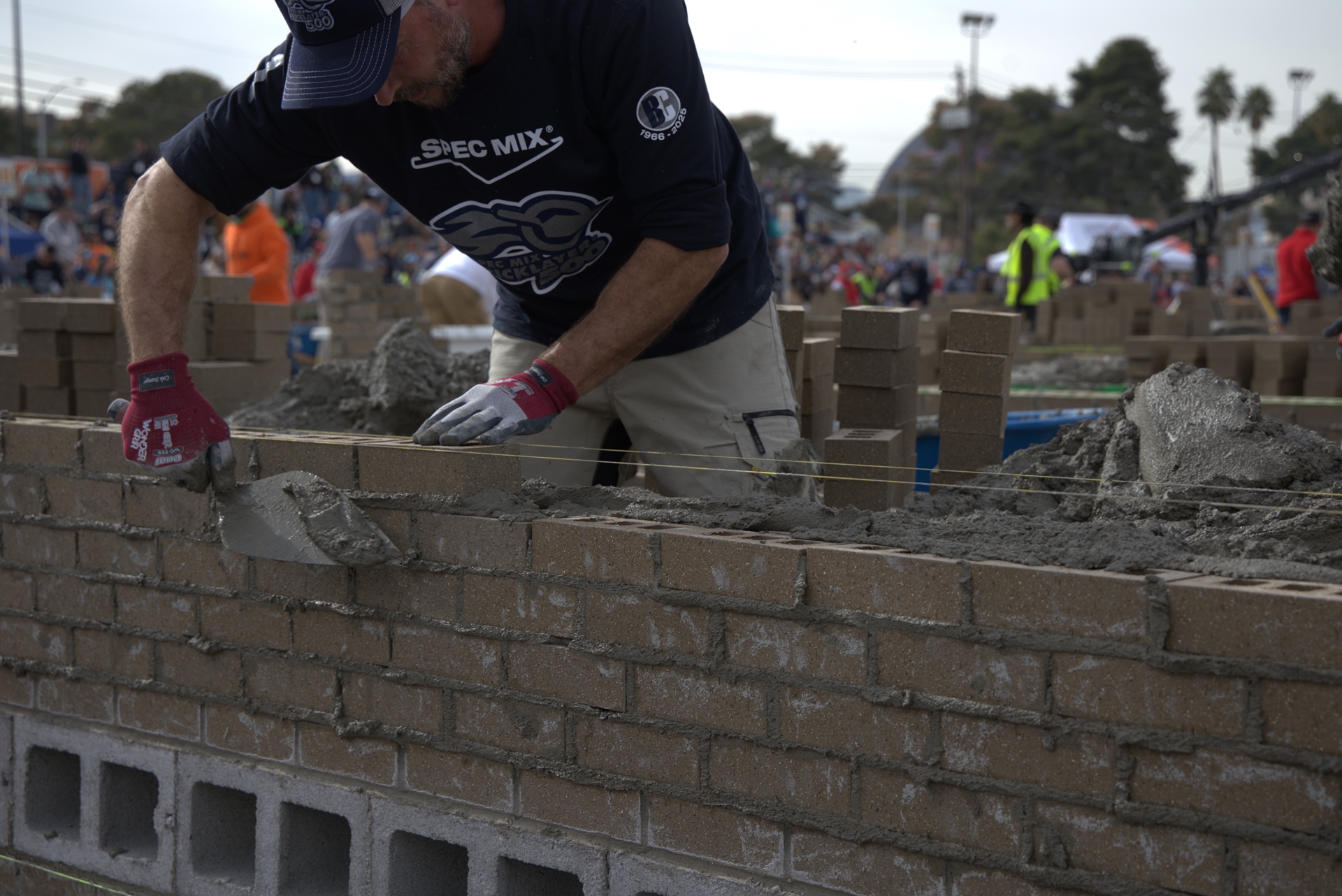

London Pattern
London Brick Trowels have a narrow blade profile. The London pattern has a rounded heel and carries mortar farther forward on the blade, making it ideal for brickwork. The slimmer profile allows for precise buttering and cleaner joint control, which is especially beneficial when working with standard brick sizes and tighter bond patterns.

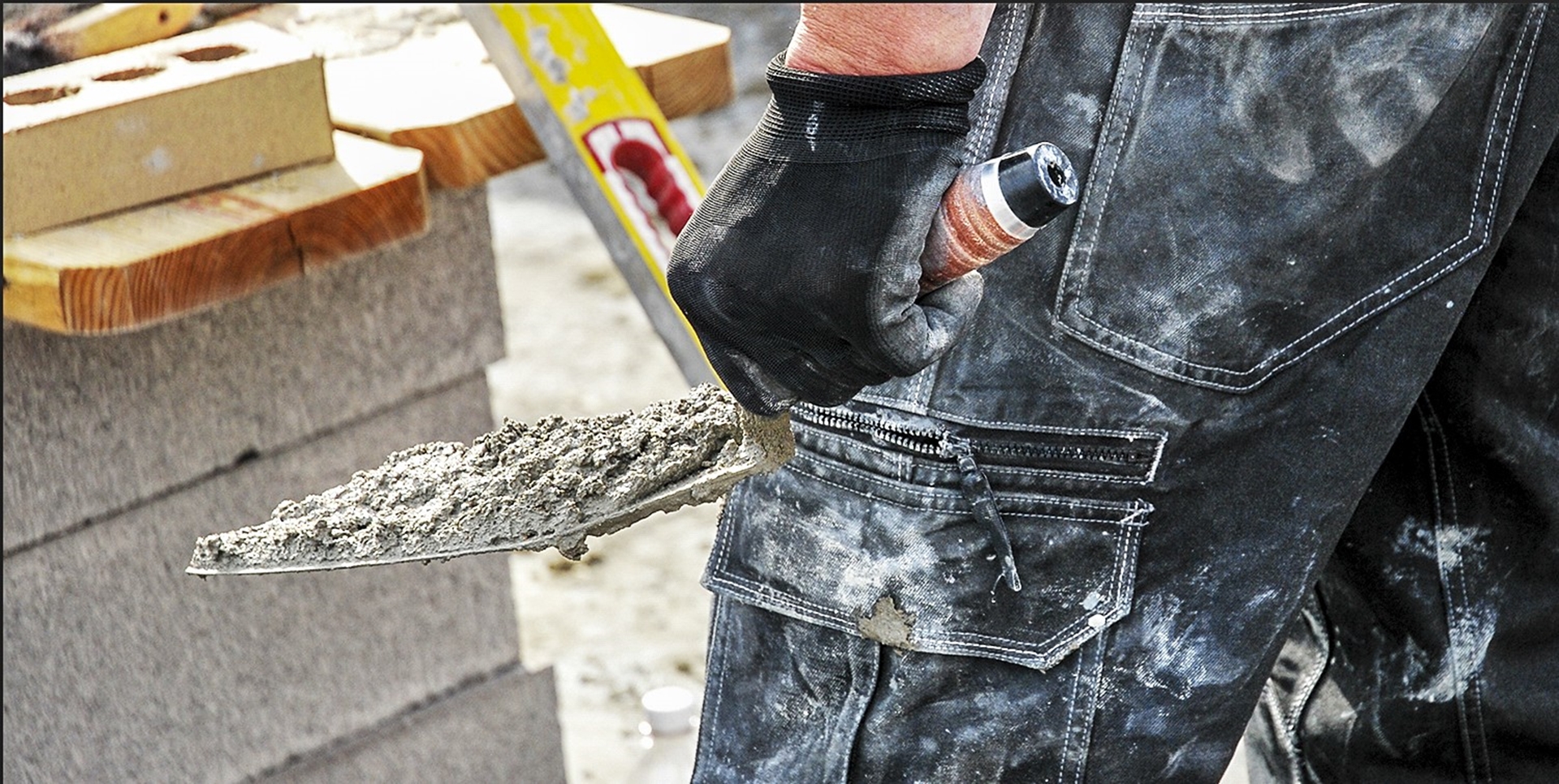

Wide London Pattern
The Wide London pattern offers a similar overall shape to the standard London, but with a broader blade. This design allows for more mortar to be carried at a time while still maintaining the forward balance and control bricklayers appreciate in a London-style trowel. It’s a popular option for masons who primarily lay brick but want to move slightly more mortar with each pass without switching to a full Philadelphia pattern.

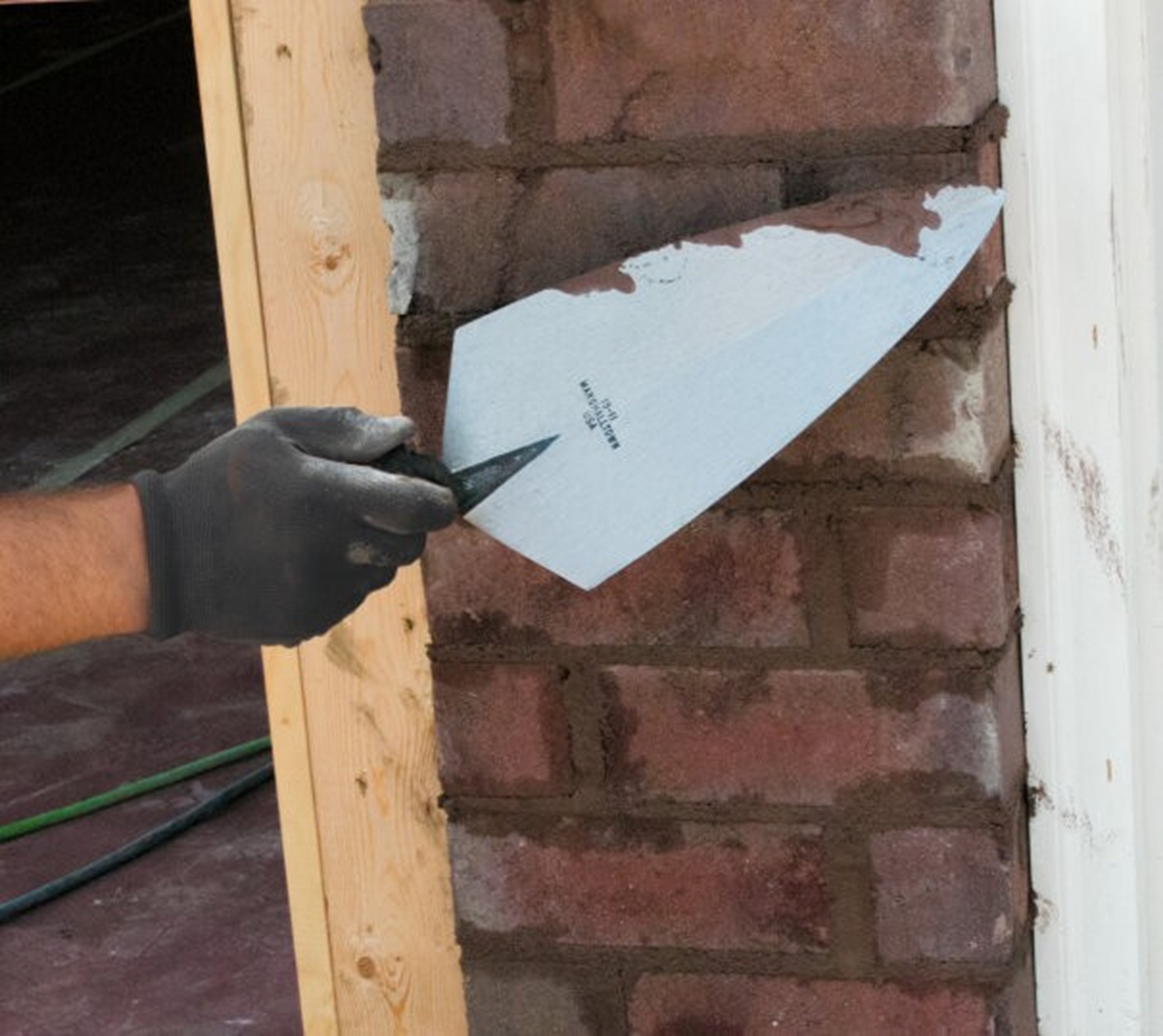

Philadelphia Pattern
Philadelphia Brick Trowels have a wide blade profile designed to hold more mortar, making them well-suited for laying larger building materials like block and stone. These materials require more mortar than brick. The broader blade provides added stability when spreading heavier loads and can help improve efficiency on larger masonry projects.

Certain patterns are better suited for specific tasks, but personal preference, regional tradition, and the type of work being completed all play a role in a mason’s choice. For example, many masons in the UK prefer to use a Philadelphia pattern brick trowel for bricklaying, while those in the United States often swear by the London pattern. Over time, most professionals develop a strong preference based on comfort and the way the trowel balances in their hand.

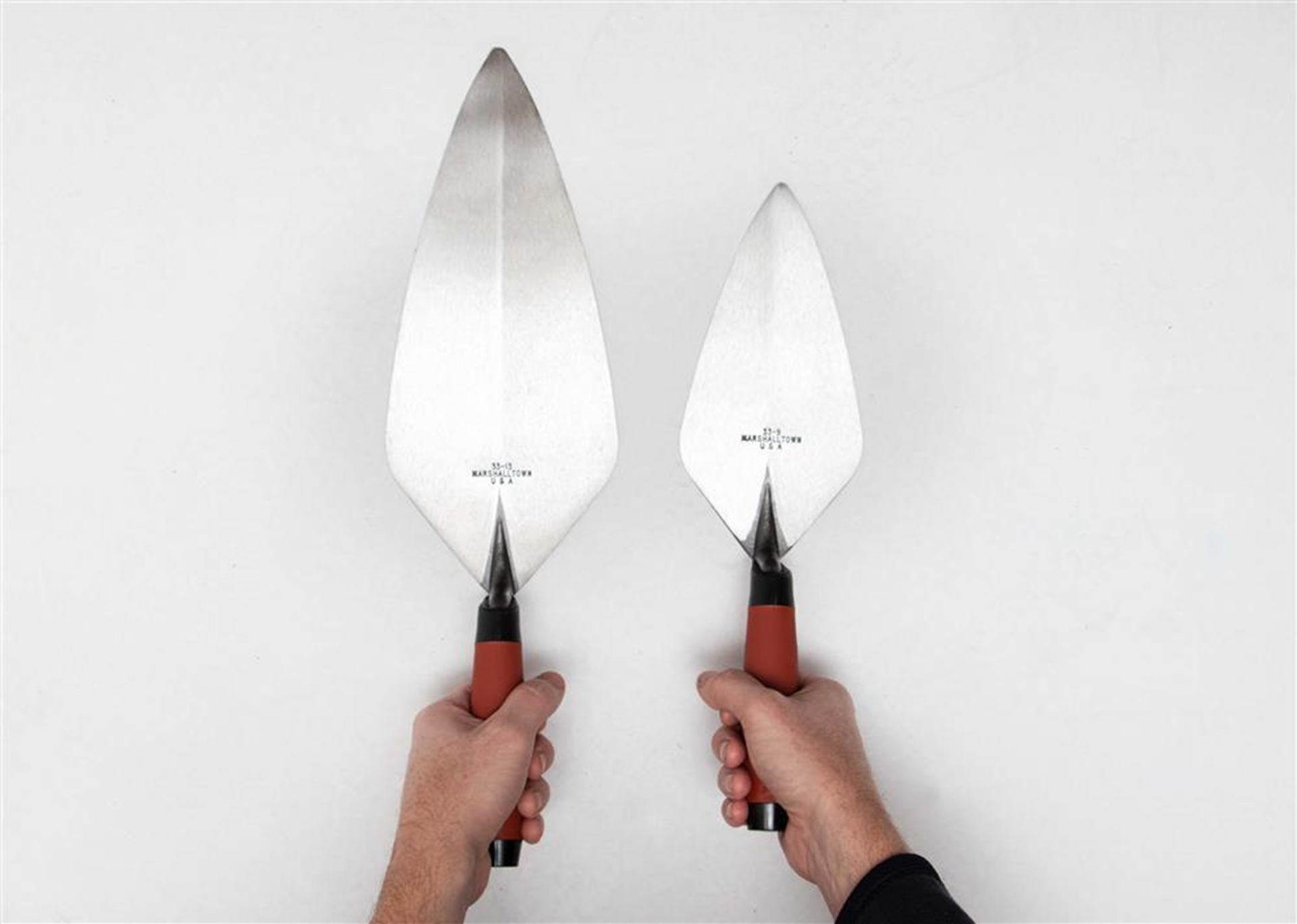

Blade Size
When choosing the size of a brick trowel, it’s important to consider the type of work you’ll be doing, the materials involved, and your own skill level. Brick trowels are commonly available in lengths ranging from 9 to 13 inches and widths from 4 1/4 to 6 inches, providing masons with a variety of options. The right blade size can make a significant difference in both speed and precision on the jobsite.

Smaller trowels, typically between 9 and 10 1/2 inches, are easier to handle and control. These shorter blades carry less mortar, which allows for more precise spreading, cleaner joints, and finer detail work. They are particularly well-suited for standard brickwork or intricate patterns where accuracy is key. For apprentices or those just learning masonry, starting with a smaller trowel is often recommended because it helps develop proper techniques and reduces strain on the wrist and forearm.

Trowels larger than 11 inches are normally used by experienced masons who need to move faster on larger projects. The longer and wider blades can hold more mortar, allowing for quicker brick or block placement and reducing the number of scoops required. While this can dramatically improve efficiency, the added weight and size require more strength, control, and rhythm to use effectively. Many professionals select a larger trowel for jobs with larger materials, such as concrete block or stone. Ultimately, the choice of blade size is a personal one, influenced by comfort, hand size, and the size of the project.

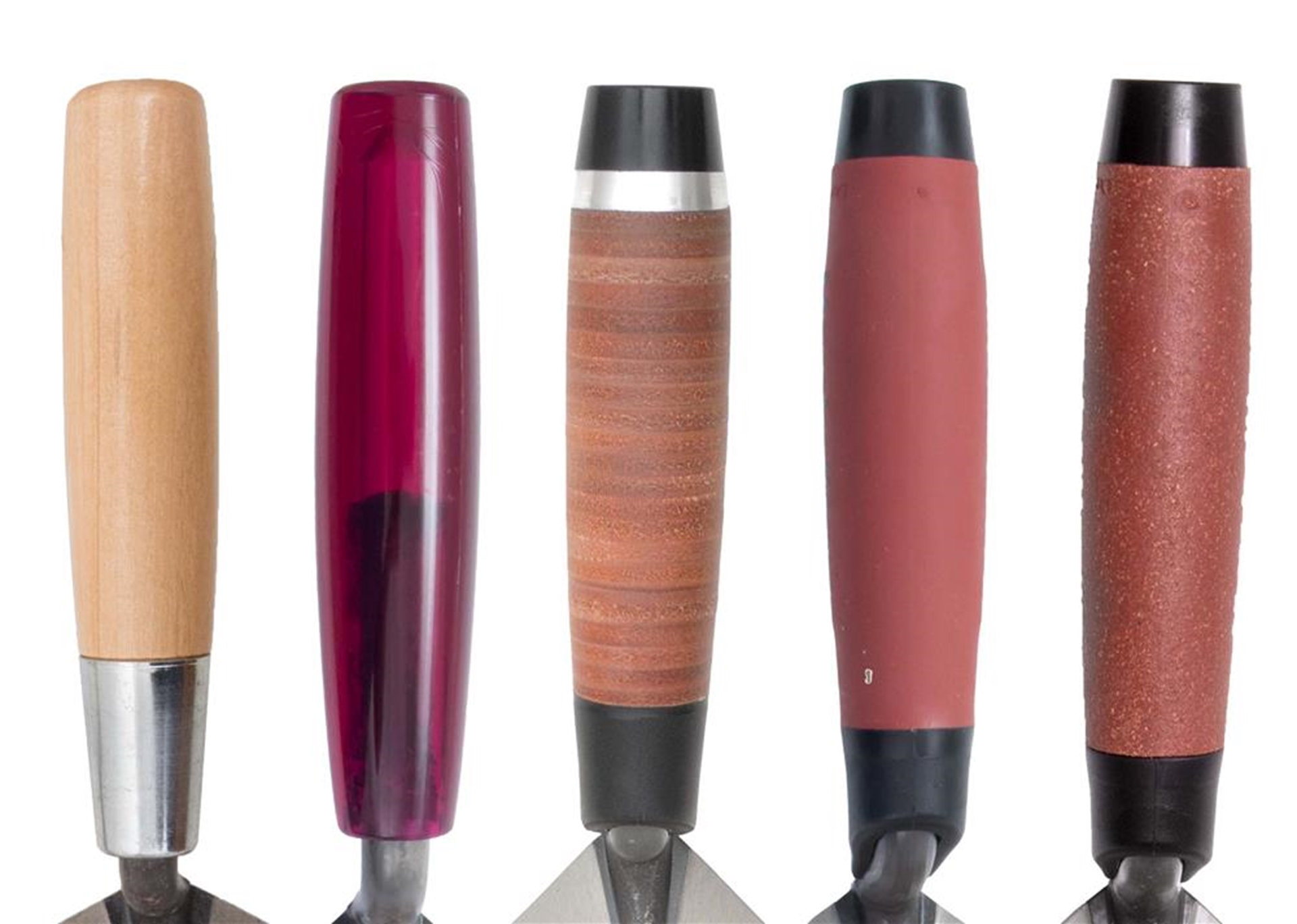

Handle Options
Handles affect grip, balance, and fatigue. With several options available, masons can select one that works best with hand size, personal preference, and the conditions they typically work in.

Wood
Wooden handles, the traditional choice, have been used by stonemasons for nearly as long as masonry itself, almost 12,000 years. Wood wears in nicely over time, forming a natural grip that many masons appreciate. However, wooden handles can become uncomfortable during extended work sessions, especially if not shaped ergonomically. They are also susceptible to moisture damage, which can lead to cracking or splitting if not properly cared for, making them better suited for masons who enjoy a classic feel and are willing to maintain their tools.

Plastic
Modern plastic handles are a popular alternative to wood. They are crack-resistant, easy to clean, and provide a consistent grip regardless of weather conditions. Plastic handles can be molded to better fit the hand, but like wooden handles, they may become uncomfortable over long periods of use.

Leather
Leather handles are popular among masons because of their comfort and texture. They are the most expensive handle option but provide a soft, non-slip grip that excels in wet or hot conditions when hands can sweat. Leather molds slightly to the user’s hand over time, offering a personalized, comfortable grip that can help reduce hand fatigue during long days on the masonry jobsite.

Soft Grip
The most popular handle material today is soft grip. These handles combine durability with ergonomics, reducing muscle strain and fatigue, which allows masons to work longer without discomfort. The cushioned surface also provides a secure grip even during intensive or repetitive motions. Soft grip handles wear well over time and are versatile across a variety of conditions, making them a top choice.

Cork
Cork handles are a premium alternative that offer a textured, tacky feel for improved grip and reduced risk of blisters. They are lightweight, naturally cushioned, and perform well in both dry and wet conditions. Cork handles are valued for their comfort and ability to reduce hand fatigue during heavy use, making them ideal for masons who spend long days on the job.

Low Rise
Some masons prefer a low-rise handle with a specially designed angle. This unique angle provides added comfort on the job and helps reduce wrist and hand strain over long periods.

Ultimately, the handling choice is personal. The right handle improves control, reduces fatigue, and enhances the overall masonry experience.

Choosing the right brick trowel comes down to tradition and personal preference. From blade pattern and size to handle material and angle, every aspect of the trowel can be tailored to the mason’s style, project, and comfort needs. While the tools themselves have remained largely consistent over time, these options allow today’s masons to work more efficiently and comfortably without sacrificing the precision and reliability that have kept the brick trowel at the center of the trade for generations.
